Agent to Agent (A2A)

The Agent to Agent (A2A) protocol enables seamless collaboration between specialized AI agents, allowing them to communicate, share knowledge, and coordinate responses based on their unique capabilities and domain expertise. With VideoSDK's A2A implementation, you can create multi-agent systems where different agents work together to provide comprehensive solutions.

How It Works

Basic Flow

1. Agent Registration: Agents register themselves with an AgentCard that contains their capabilities and domain expertise
2. Client Query: Client sends a query to the main agent
3. Agent Discovery: Main agent discovers relevant specialist agents using agent cards
4. Query Forwarding: Main agent forwards specialized queries to appropriate agents
5. Response Chain: Specialist agents process queries and respond back to the main agent
6. Client Response: Main agent formats and delivers the final response to the client

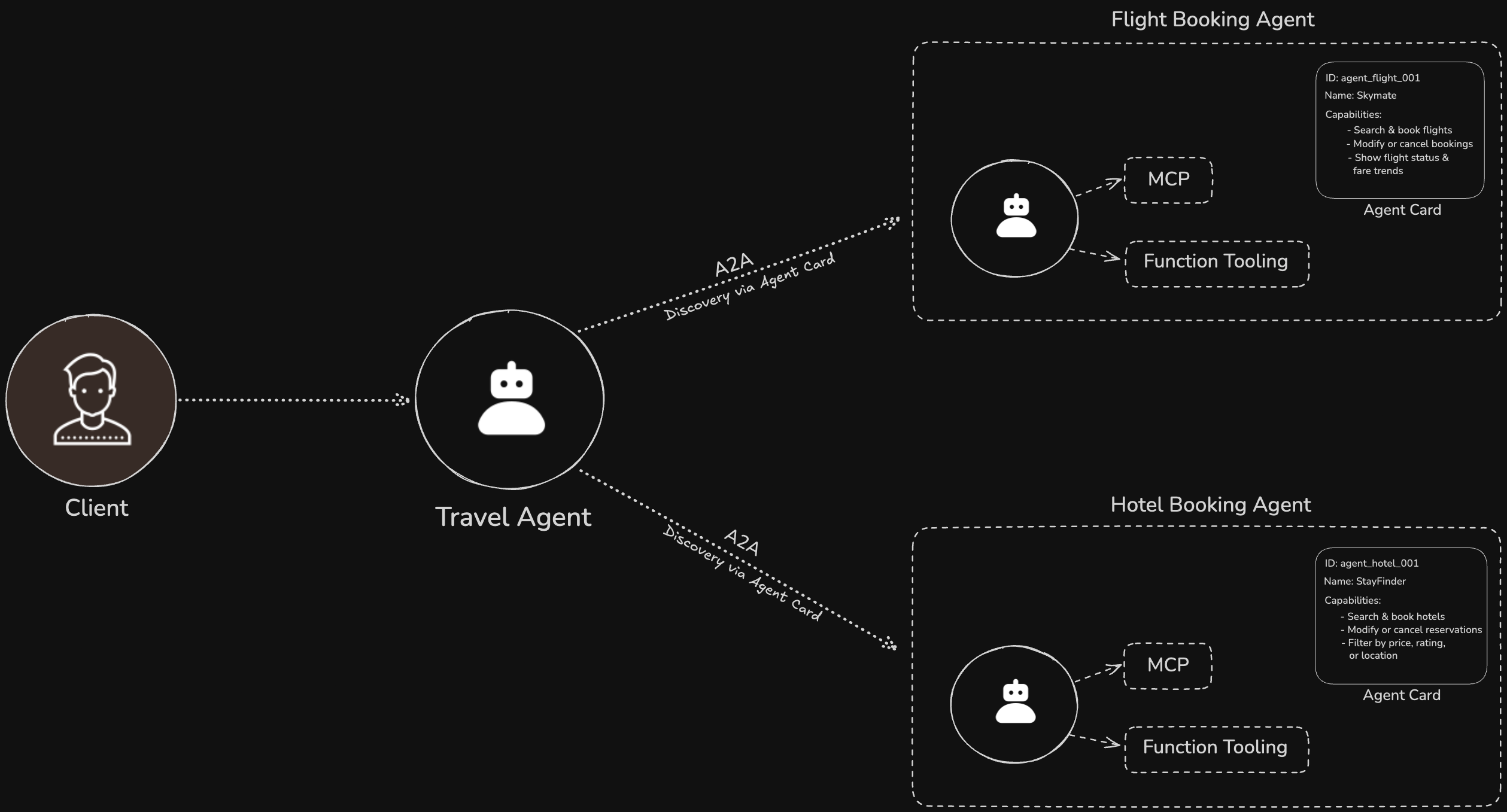

Example Scenario

Client → "Book a flight to New York and find a hotel"
   ↓
Travel Agent (Main) → Analyzes query
   ↓
Travel Agent → Discovers Flight Booking Agent & Hotel Booking Agent
   ↓
Travel Agent → Forwards flight query to Flight Booking Agent
Travel Agent → Forwards hotel query to Hotel Booking Agent
   ↓
Specialist Agents → Process queries and respond back (text format)
   ↓
Travel Agent → Combines responses and sends to client (audio format)

Core Components

1. AgentCard

The AgentCard is how agents identify themselves and advertise their capabilities to other agents.

Structure

AgentCard(
    id="agent_flight_001",
    name="Skymate",
    domain="flight",
    capabilities=[
        "search_flights",
        "modify_bookings",
        "show_flight_status"
    ],
    description="Handles all flight-related tasks"
)

Parameters

Parameter	Type	Required	Description
id	string	Yes	Unique identifier for the agent
name	string	Yes	Human-readable agent name
domain	string	Yes	Primary expertise domain
capabilities	list	Yes	List of specific capabilities
description	string	Yes	Brief description of agent's purpose
metadata	dict	No	Additional metadata for the agent

2. A2AMessage

A2AMessage is the standardized communication format between agents.

Structure

message = A2AMessage(
    from_agent="travel_agent_1",
    to_agent="agent_flight_001",
    type="flight_status_query",
    content={"query": "What's the status of AI202?"},
    metadata={"client_id": "xyz123", "urgency": "medium"}
)

Parameters

Parameter	Type	Required	Description
from_agent	string	Yes	ID of the sending agent
to_agent	string	Yes	ID of the receiving agent
type	string	Yes	Message type/event name
content	dict	Yes	Message payload
metadata	dict	No	Additional message metadata

3. Agent Registry

register_a2a(agent_card)

Register an agent with the A2A system.

async def on_enter(self):
    await self.register_a2a(AgentCard(
        id="agent_flight_001",
        name="Skymate",
        domain="flight",
        capabilities=[
            "search_flights",
            "modify_bookings",
            "show_flight_status"
        ],
        description="Handles all flight-related tasks"
))

What Registration Does:

• Adds the agent to the global AgentRegistry singleton
• Makes the agent discoverable by other agents
• Stores both the AgentCard and agent instance
• Enables message routing to this agent

unregister()

Unregister an agent from the A2A system.

await self.unregister_a2a()

4. A2AProtocol Class

The main class for managing agent-to-agent communication.

Agent Discovery

find_agents_by_domain(domain: str)

Discover agents based on their domain expertise.

agents = self.a2a.registry.find_agents_by_domain("hotel")
# Returns: ["agent_hotel_001"]

find_agents_by_capability(cap: str)

Find agents with specific skills.

agents = await self.a2a.registry.find_agents_by_capability("modify_bookings")
# Returns: ["agent_flight_001"]

---

Agent Communications

send_message(to_agent, message_type, content, metadata=None)

Send messages directly to other agents.

await self.a2a.send_message(
    to_agent="agent_hotel_001",
    message_type="hotel_booking_query",  # Event name that the receiving agent listens for
    content={"query": "Find 3-star hotels in Delhi under $100"},
    metadata={"client_id": "xyz123"}     # Optional metadata
)

Parameters:

• to_agent (string): Target agent ID
• message_type (string): Event name the receiving agent listens for
• content (dict): Message payload
• metadata (dict, optional): Additional message metadata

on_message(message_type, handler)

Register message handlers for incoming messages.

# Register a handler for specialist queries
self.a2a.on_message("hotel_booking_query", self.handle_specialist_query)

async def handle_specialist_query(self, message):
    # Process the incoming message
    query = message.content.get("query")
    # ... process query ...
    # Return response
    return {"response": "Current mortgage rates are 6.5%"}

Next Steps

Now that you're familiar with the core A2A concepts, it's time to move from theory to practice:

👉 Explore the Full A2A Implementation Dive into a complete, working example that demonstrates agent discovery, messaging, and collaboration in action.
