AI Telephony Agent Quick Start

This guide will walk you through creating a fully functional AI telephony agent using VideoSDK Agent SDK. You'll learn how to run the agent locally, connect it to the global telephone network using SIP, and enable it to handle both inbound and outbound phone calls. By the end, you'll have a working AI assistant that you can talk to from any phone.

The Architecture​

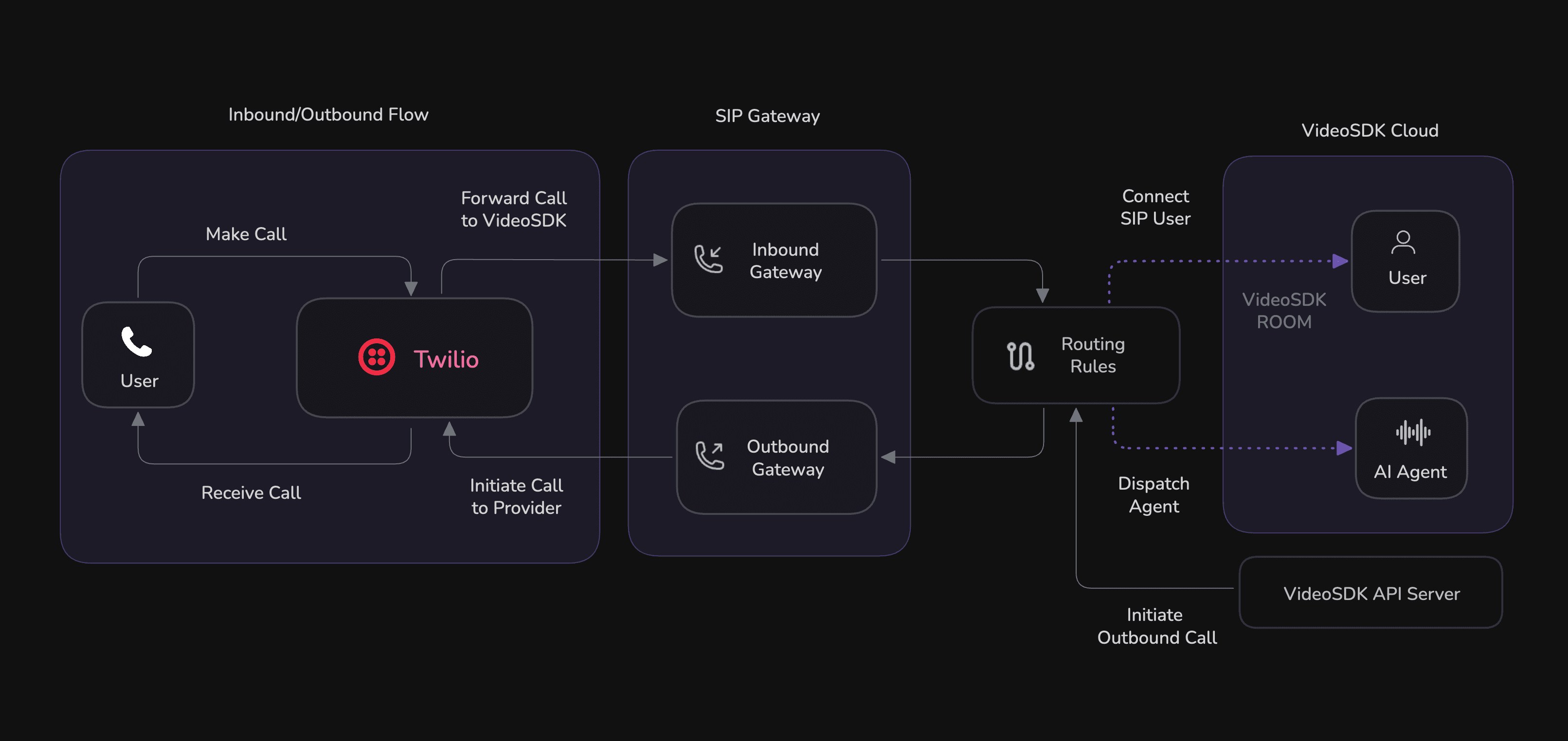

Before we dive in, let's look at the high-level architecture. A call from the phone network is directed by a SIP provider (like Twilio) to VideoSDK's telephony infrastructure. A Routing Rule then intelligently dispatches the call to your self-hosted AI agent, which processes the audio and responds in real-time.

Architecture: Connecting a Voice Agent to the Telephony Network

What You'll Build​

We'll create a simple yet powerful project with the following structure:

├── main.py                 # The core logic for your AI voice agent
├── requirements.txt        # Python package dependencies
└── .env                    # Your secret credentials

Prerequisites​

To get started, you'll need a few things:

  • Python 3.12+: Ensure you have a modern version of Python installed.
  • VideoSDK Account: Sign up for a free VideoSDK account to get your VIDEOSDK_TOKEN. This token is used to authenticate your agent and manage telephony settings.

Part 1: Build and Run the AI Agent Locally​

First, let's get the AI agent running on your machine.

Step 1: Set Up Your Project​

1
Set Up Your Project

  1. Create a .env file to store your secret keys. Add your credentials:

    .env
    VIDEOSDK_AUTH_TOKEN="your_videosdk_token_here"
    GOOGLE_API_KEY="your_google_api_key_here"

    API Keys - Get API keys: Google API Key ↗ & Create your VideoSDK Account ↗ and follow this guide to generate videosdk token

  2. Create a requirements.txt file and paste in the necessary dependencies:

    requirements.txt
    videosdk-agents
    videosdk-plugins-google
    python-dotenv

    Latest Version: Check the latest videosdk-agents version on PyPI for the most recent release.

  3. Finally, create the main.py file. This script defines your agent's personality and handles the connection to VideoSDK.

    main.py
    import asyncio
    import traceback
    from videosdk.agents import Agent, AgentSession, Pipeline, JobContext, RoomOptions, WorkerJob, Options
    from videosdk.agents.plugins import GeminiRealtime, GeminiLiveConfig
    from dotenv import load_dotenv
    import os
    import logging
    logging.basicConfig(level=logging.INFO)

    load_dotenv()

    # Define the agent's behavior and personality
    class MyVoiceAgent(Agent):
        def __init__(self):
            super().__init__(
                instructions="You are a helpful AI assistant that answers phone calls. Keep your responses concise and friendly.",
            )

        async def on_enter(self) -> None:
            await self.session.say("Hello! I'm your real-time assistant. How can I help you today?")

        async def on_exit(self) -> None:
            await self.session.say("Goodbye! It was great talking with you!")

    async def start_session(context: JobContext):
        # Configure the Gemini model for real-time voice
        model = GeminiRealtime(
            model="gemini-3.1-flash-live-preview",
            api_key=os.getenv("GOOGLE_API_KEY"),
            config=GeminiLiveConfig(
                voice="Leda",
                response_modalities=["AUDIO"]
            )
        )
        pipeline = Pipeline(llm=model)
        session = AgentSession(agent=MyVoiceAgent(), pipeline=pipeline)

        await session.start(wait_for_participant=True, run_until_shutdown=True)

    def make_context() -> JobContext:
        room_options = RoomOptions()
        return JobContext(room_options=room_options)

    if __name__ == "__main__":
        try:
            # Register the agent with a unique ID
            options = Options(
                agent_id="MyTelephonyAgent",  # CRITICAL: Unique identifier for routing
                register=True,               # REQUIRED: Register with VideoSDK for telephony
                max_processes=10,            # Concurrent calls to handle
                host="localhost",
                port=8081,
                )
            job = WorkerJob(entrypoint=start_session, jobctx=make_context, options=options)
            job.start()
        except Exception as e:
            traceback.print_exc()

Step 2: Set Up Your Environment and Install Dependencies​

2
Set Up Your Environment and Install Dependencies

Create and activate a virtual environment to keep your project dependencies isolated.

# Create the virtual environment
python3 -m venv .venv

# Activate it (macOS/Linux)
source .venv/bin/activate
# On Windows, use: .venv\Scripts\activate

# Install the required packages
pip install -r requirements.txt

Step 3: Run the Agent​

3
Run the Agent

Now, start your agent by running the Python script.

python main.py

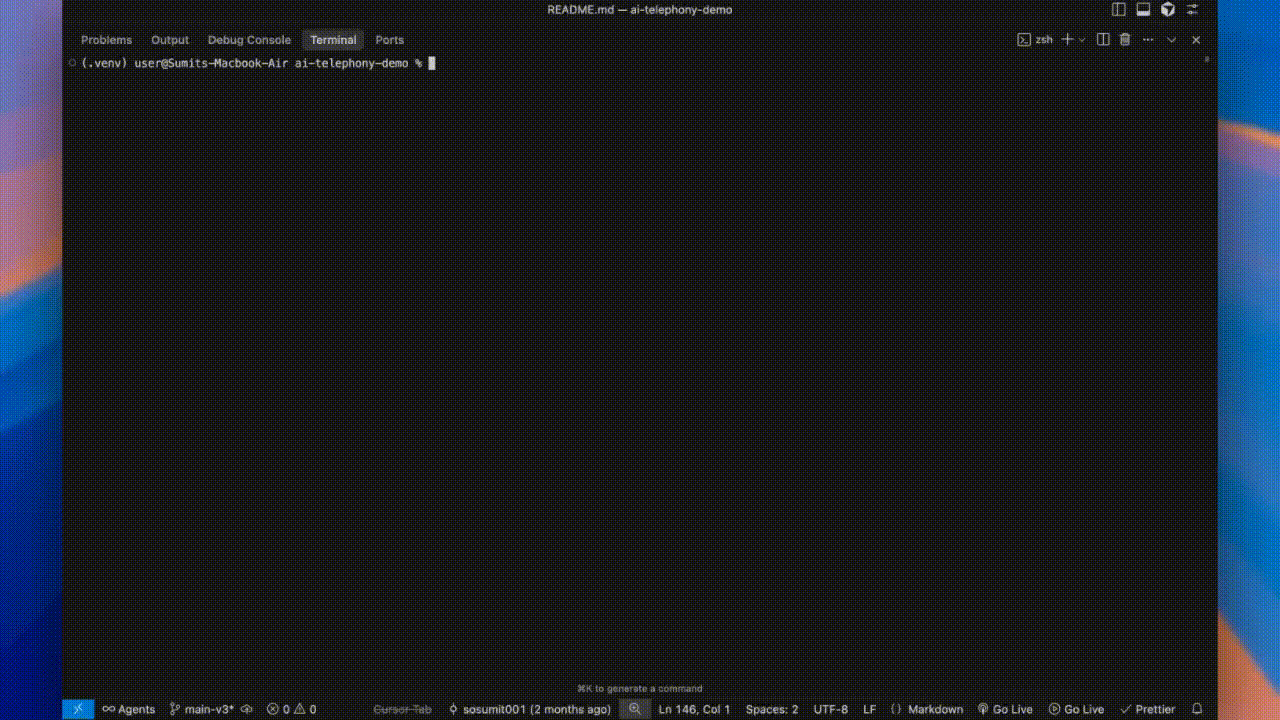

Your terminal will show that the agent is running and has registered itself with VideoSDK using the ID MyTelephonyAgent. This ID is crucial for routing calls to it later.

Running AI Agent Locally

Important: Keep this terminal window open. Your agent must remain running to accept connections.

Part 2: Connect Your Agent to the Phone Network​

With your agent running locally, it's time to connect it to the outside world. This involves setting up gateways and routing rules in your VideoSDK dashboard.

Step 1: Add SIP Configuration​

1
Add SIP Configuration
  • Go to the VideoSDK Dashboard.
  • Click on Add Number.
  • Click on Configure SIP.
  • Give a name and add your phone number.

Step 2: Setup Inbound Gateway​

2
Setup Inbound Gateway
  • Copy the Inbound URL from the VideoSDK dashboard.
  • Go to Twilio and create a new SIP Trunk.
  • Go to the Origination section, paste the Inbound URL there, and save it.

Step 3: Setup Outbound Gateway​

3
Setup Outbound Gateway
  • Go to the Termination section in Twilio, create a URI, and paste it into the outbound section in the VideoSDK dashboard.
  • Create a username and password in Twilio and add it to the VideoSDK outbound section.

Step 4: Setup Routing Rules​

4
Setup Routing Rules
  • Click on Configure rule then Create new routing rule.
  • Add Routing Rule Name.
  • Select API Key.
  • Add Call Direction (Inbound or Outbound).
  • Add Phone Number.
  • Add Room Type.
  • Add Agent ID.
  • Click Save.

You have now successfully instructed VideoSDK to route all inbound calls from your phone number directly to your running Python agent.

Part 3: Time to Talk! Make and Receive Calls​

Your setup is complete! Let's test it out.

Keep Your Agent Running

Make sure your AI agent is running locally before configuring the telephony settings. The agent must be active to receive incoming calls.

Making an Inbound Call​

  • Using any phone, dial the SIP number you configured.
  • Your local Python agent will automatically answer.
  • You'll hear the greeting: "Hello! I'm your real-time assistant. How can I help you today?"
  • Start talking! The agent will listen and respond in real-time.

Making an Outbound Call​

You can trigger an outbound call from your agent using a simple API request.

Use curl or any API client to make a POST request to the VideoSDK API. Replace $YOUR_TOKEN and the routingRuleId with your own.

curl -H 'Authorization: $YOUR_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
    "sipCallFrom" : "+14155550100",
    "sipCallTo" : "+14155550199",
    "routingRuleId" : "rr_2554md"
  }' \
  -X POST https://api.videosdk.live/v2/sip/call

This will command your MyTelephonyAgent to dial the specified number and start a conversation.

Geographic Optimization

For optimal performance, run your agent in the same geographic region as your SIP provider (e.g., US East for Twilio, US West for Telnyx, Europe for Plivo). This reduces latency and improves call quality.

Next Steps​

Congratulations! You've built and deployed a sophisticated AI telephony agent. You've seen how to run it locally and connect it to the global phone network for both inbound and outbound communication.

Deploy Your Agent

Learn how to deploy your AI agent to production

Explore Telephony Docs

Comprehensive telephony documentation and guides

Provider Integrations

SIP provider setup guides (Twilio, Vonage, etc.)

Got a Question? Ask us on discord

Last updated on by Deep Bhupatkar
